Medical Gas Systems Installation: What You Need to Know for Safety

Posted by Jason Di Marco on January 02, 2024
Jason Di Marco


Medical gas systems in healthcare facilities and hospitals are essential for saving lives and providing critical patient care.

Often, medical gas systems fall under the oversight of a Certified Healthcare Facility Manager (CHFM). One of the more demanding responsibilities of a Certified Healthcare Facility Manager is to ensure their facility remains compliant regarding the use of medical gases.

Compliance requires that accredited personnel, usually a third party specializing in medical compliance, conduct all repairs, maintenance, and inspections.

Because these gases are so vital, proper installation is of the utmost importance.

In dealing with these critical gases, specific questions and materials are necessary for the safety of your patients and healthcare facility before installation.

(This article only covers some requirements of NFPA 99 and should not replace the official NFPA 99 Healthcare Facilities Code.)

Are You Struggling with Medical Gas Compliance?

CHT offers medical gas services to help you reach your compliance goals. To help you navigate through these challenges, start with a free 30-minute discovery call.

Let's Talk

Questions About Medical Gas Systems Installation

A 7-question checklist to ask before your next medical gas installation.

  1. Do you have the blueprints for the new and the existing system? Engineering blueprints play a crucial role in ensuring patient safety and proper design. What edition of NFPA is your design following? Does this meet the requirements of your state?
  3. Have you put together a risk assessment meeting prior to the medical gas shutdown that ensures all department heads are aware of the project and its potential effects on the facility's patients?  Do you have an emergency plan in the event that all medical gases are affected during the project?
  5. Do you have at least two times the estimated amount of gas needed for backfeeding your system? Who is responsible for the medical gas backfeed?
  7. How "temporary" is your temporary supply? Has your backfeed been verified, and are all NFPA 99 requirements being met? Will your master alarms still function during your medical gas shutdown?
  9. Are certified ASSE 6010 installers and ASME IX brazers performing the work? Ask to see their NITC identification to ensure they hold up-to-date certifications for the project. Make sure your contractor will pass inspection.
  11. Is the verifying company working for you or the contractor? It is the facility's decision who hires the verifier; choose a verifier whose interests are not with the contractor but with your facility.
  13. Will your project be properly documented when complete? Have you updated your life safety drawings? Will you have the technical specifications and manuals for the new components in your system?

Acceptable Plumbing Materials for Medical Gas Installation

Piping - In accordance with ASTM B819, piping for the distribution of medical gas is a seamless copper tube, identified as Types K or L. "The tube shall be installed in conformance with the requirements of the National Fire Protection Association (NFPA) Standard 99".

The Size - 1/2 inch or larger is used for installations. In addition, the piping will be marked with the appropriate blue or green, specifying it is used for medical gas. (Ref. NFPA 99

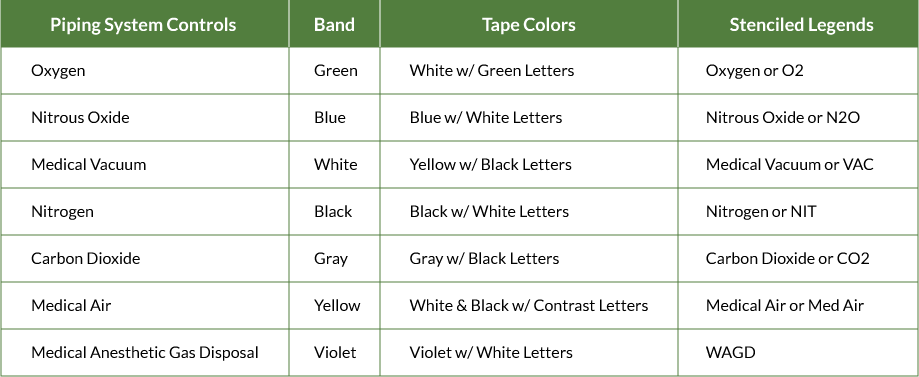

Medical gas piping must be clearly identified using nonremovable stickers color-coded according to the gas. Colors are standardized according to the code provisions in your area and should be spaced along the pipe, no more than 20 ft. apart, and at every valve, at each access door, and at each service connection.

For buried pipes, a continuous tape or marker shall be placed immediately above the pipe to identify the pipeline by a specific name.


Valves - must be NFPA 99 compliant. Check valves are used to prevent the movement of gas (or water in plumbing) from going in the opposite directions as intended. It prevents backflow. Backflow is the flow of gas (or vacuum) from going the wrong way. Source valves must be at the immediate connection of each source to the distribution.

Fittings - must meet applicable standards for your specific region.

"All piping, valves, fittings and other components for use in all non-flammable medical gas systems must be thoroughly cleaned by the manufacturer to remove oil, grease and other readily oxidizable materials as if they were being prepared for oxygen service."

Proper Installation Requires a Safe Manifold Room

Indoor storage or manifold areas for medical gases need proper ventilation.

While vacuum, WAGD, Medical air, and Instrument air are generated locally in most hospitals, lower-volume gases may come through a piped system from cylinders connected to a manifold. Hospitals commonly have nitrogen, nitrous oxide, and carbon dioxide produced through a manifold.

The infographic below shows most of the requirements for a manifold room as described by NFPA 99-2012.


Knowing the requirements before installation will be a "life-saver" for you and your patients if you are renovating your healthcare facility or under new construction. If you are thinking of remodeling, CHT can provide a checklist of the most common problems we have discovered and the tests each vendor needs to follow.

Of course, each construction site is unique, and there is no way to anticipate every installation conflict. Still, by pre-planning on the prints and dealing with certified vendors that follow all the guidelines, your verification can become a mere formality.

Reference NFPA 99 (1-9) for design and construction details for locations of central supply systems and storage of positive pressure gases.

Features of Medical Gas Installation

Proper installation needs to be flawless and work efficiently. There are 4 components of medical gas systems that work together to deliver or remove medical gases in a healthcare facility.

  • Pipefitting - Pipefitting is an essential aspect of medical gas. As stated above, materials must adhere to proper piping for distribution.

  • Storage - Production, storage, and delivery is a complex process. Storage, as discussed within manifold rooms, is a key safety factor. Cylinders are color-coded and labeled for the identification of their contents. When dealing with "bulk" storage (i.e., bulk liquid oxygen), NFPA requires hospitals to maintain a backup gas supply.

  • Delivery - After installation, ensure that gas flow and pressure are consistent and unimpeded.

  • Waste - The purpose of the WAGD system should always be to ensure that gas is making its way safely outside, without getting trapped in any part of the anesthetic gas system, maximizing the safety of the physicians and patients as well as securing the OR.

Medical gas use requires proper installation, consistent maintenance, testing/monitoring, safety practices, and inspection.

Medical Gas Installer Requirements

Medical gas installers must be proficient and experienced in the installation of medical gas and vacuum systems covered by the ASSE Series 6000 Standard, which states, "Installers include anyone who works on or installs piping or components, including brazers."

Certified installers of medical gas and vacuum systems shall not use their certification to oversee installation by noncertified personnel. (NFPA 99, 2012,

The American Society of Sanitary Engineering (ASSE) developed the Series 6000 Standard for medical gas systems personnel.

"[The Series 6000 Standard] provides municipalities and employers with a nationally recognized standard, ensuring that personnel working on the installation or maintenance of critically important medical gas systems possess the knowledge and experience required to handle it safely and properly. Installers include anyone who works on, or with, piping or any related components, including brazers."

All installers must meet the requirements of ASSE 6010, the Professional Qualification Standard for Medical Gas System Installers, and the ASME IX brazing qualification.

There are also approximately six installer-performed testing requirements used as part of verification.

  1. Initial piping blow down to clear piping.

  2. Conduct a pressure test to ensure there are no leaks.

  3. Cross-connection test for proper pressurization.

  4. Pipe purge test for proof of debris.

  5. A standing pressure test, used to verify proper connections and that devices are sealed internally.

  6. Standing vacuum test to identify vacuum hold time. (The system should hold vacuum for 24 hours.)


Faulty medical gas installation can result in a hazardous situation. Whether you are renovating an older facility or constructing a new one, healthcare facilities must have the knowledge and experience to handle medical gas safely and properly.
